Dacor AOMTK27 User Manual download pdf

For DACOR

Built-in Kit Models

AOMTK27

AOMTK30

THIS KIT IS UL APPROVED TO ALLOW CERTAIN MICROWAVE OVENS TO BE INSTALLED ABOVE CERTAIN CONVENTIONAL/CONVECTION WALL

OVENS. PLEASE SEE THE OPERATION MANUAL REGARDING APPROVED BUILT-IN APPLICATIONS.

IF YOUR LOWER CONVENTIONAL OVEN IS NOT LISTED IN THE OPERATION MANUAL OR INSTALLATIN INSTRUCTIONS OF THE MICROWAVE OVEN

AS AN APPROVED MAKE AND MODEL, THEN DO NOT INSTALL THE MICROWAVE OVEN IN ANY AREA WHERE HEAT AND STEAM ARE GENERATED;

FOR EXAMPLE, NEXT TO OR ABOVE A CONVENTIONAL RANGE OR ABOVE A CONVENTIONAL WALL OVEN.

I N S T A L L A T I O N I N S T R U C T I O N S

SCREW A - QTY 2

SCREW B - QTY 4

Lower Oven:

EO127, EO130, MOV127, MOH127, MOV130, MOH130, PO127, PO130

Do not build-in above any other gas or electric wall oven.

IMPORTANT :

This Built-in Kit is designed for and approved only for those DACOR Microwave Ovens specifying Built-In Kit AOMTK27

or AOMTK30 on the rating label on the left side wall of the oven cavity.

The cabinet or wall opening must be within the following dimensions:

HEIGHT : 16

/4/

" to 17"

WIDTH : 24

/8/

" to 24

DEPTH : minimum 20"

PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE BEGINNING INSTALLATION!

•

Be sure to DISCONNECT THE PLUG of the microwave oven from the electrical outlet before installing the Built-in Kit.

Remove the turntable from the oven cavity.

•

Because the kit includes metal parts, due caution should be used in handling and installation to avoid the possibility of

injury.

FRAME ASSEMBLY - QTY 1

EXHAUST DUCT ASSEMBLY - QTY 1

1 2 3 4

Summary of Contents

Page 1 - AOMTK30

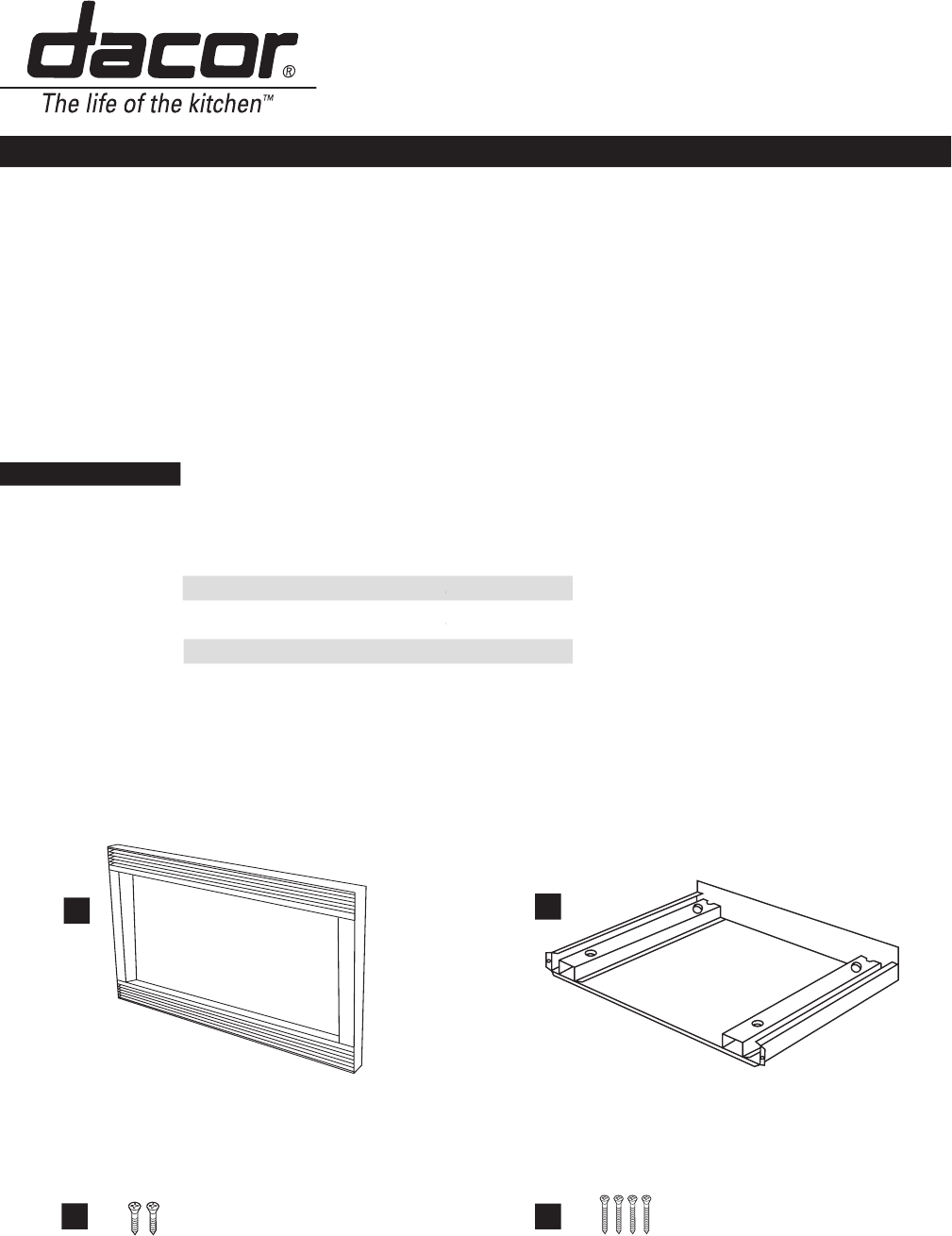

1For DACORBuilt-in Kit Models AOMTK27 or AOMTK30THIS KIT IS UL APPROVED TO ALLOW CERTAIN MICROWAVE OVENS TO BE INSTALLED ABOVE CERTAIN C

Page 2 - Figure 2

2C4"4"6"1. Place the EXHAUST DUCT ASSEMBLY in the open-ing. When the EXHAUST DUCT ASSEMBLY is in the opening correctly, its ﬂ anges wi

Page 3 - STEP 4 FRAME INSTALLATION

3STEP 3 OVEN INSTALLATION1. Place the oven adjacent to the wall or cabinet opening. Plug the POWER SUPPLY CORD into the electrical outlet.2.

Page 4 - OVER OVEN INSTALLATION

4OVER WARMING OVEN INSTALLATIONTINSEB422MRR0DACOR INC.1440 Bridge Gate Drive • Diamond Bar, CA 917651-800-793-0093 • www.dacor.comOVER OVEN INSTALLATI
